What Are the Differences Between a 37.5KVA Pole-Mounted Transformer and a Pad-Mounted Transformer

Selecting the right distribution transformer is a critical decision for utilities, contractors, and industrial facility managers. When comparing a 37.5KVA Pole-Mounted Transformer with a pad-mounted unit, the choice often comes down to installation environment, budget, and long-term maintenance strategy. As a leading manufacturer with decades of expertise, Guangbian designs and produces both configurations to meet diverse grid requirements. This article breaks down the key differences to help you make an informed, code-compliant decision.

Core Design and Installation Differences

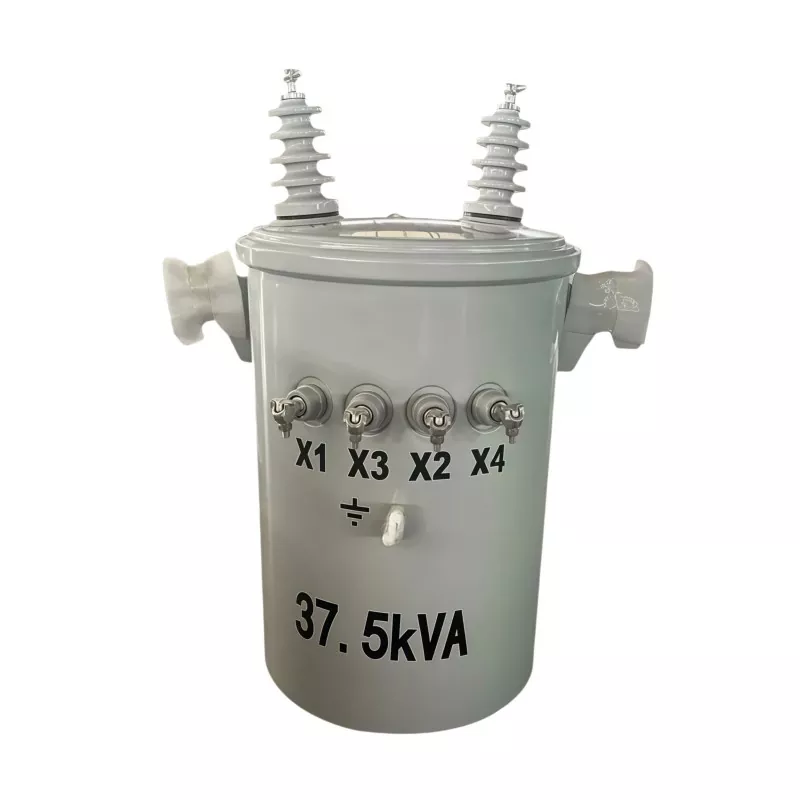

The most obvious distinction lies in where and how the transformer is mounted. A 37.5KVA Pole-Mounted Transformer is designed to be installed directly on a utility pole, typically at heights between 15 and 30 feet. This configuration saves ground space and reduces the risk of tampering or accidental contact. In contrast, a pad-mounted transformer sits on a concrete pad at ground level, usually in a locked, tamper-resistant enclosure.

Guangbian engineers both types to meet IEEE and IEC standards, but the mechanical and thermal designs differ significantly. Pole-mounted units must be lightweight and compact to minimize pole stress, while pad-mounted units prioritize accessibility for maintenance and cable termination.

Comparison Table: Key Specifications

When to Choose a 37.5KVA Pole-Mounted Transformer

• Space constraints: Ideal for alleys, rural roads, and areas where ground space is unavailable.

• Cost sensitivity: Lower installation cost because no concrete pad or extensive trenching is required.

• Security concerns: Elevated placement reduces vandalism and unauthorized access.

• Short spans: Suitable for serving a small number of homes or a single commercial load.

When to Choose a Pad-Mounted Transformer

• Aesthetics: Preferred in residential neighborhoods where overhead lines are restricted.

• Ease of maintenance: Ground-level access allows technicians to work without bucket trucks.

• Larger loads: Pad-mounted units can be specified with larger radiators and forced cooling for higher capacity.

• Underground distribution: Standard choice for underground residential distribution (URD) systems.

Guangbian manufactures both types with high-grade grain-oriented silicon steel cores and copper windings, ensuring low loss and long service life. Our 37.5KVA Pole-Mounted Transformer models are particularly popular in export markets for their corrosion-resistant tanks and robust bushings.

FAQ: Common Questions About 37.5KVA Pole-Mounted Transformer

Q: What is the typical primary voltage of a 37.5KVA Pole-Mounted Transformer?
A: A 37.5KVA Pole-Mounted Transformer is commonly available with primary voltages of 12.47kV, 13.8kV, 24.94kV, and 34.5kV, with secondary voltages of 120/240V or 277/480V, depending on the application and utility standards.

Q: How much does a 37.5KVA Pole-Mounted Transformer weigh?
A: The weight typically ranges from 450 kg to 650 kg (about 990 to 1,430 lbs), varying with tank design, oil volume, and whether it uses aluminum or copper windings. Guangbian provides detailed weight specifications for each model.

Q: Can a 37.5KVA Pole-Mounted Transformer be used for underground service?
A: No, a 37.5KVA Pole-Mounted Transformer is specifically designed for overhead pole installation. For underground service, a pad-mounted transformer is the correct choice because it is enclosed and rated for ground-level operation.

Conclusion and Contact Us

Choosing between a 37.5KVA Pole-Mounted Transformer and a pad-mounted unit depends on your project's space, budget, maintenance capabilities, and local codes. Guangbian offers both configurations with full technical documentation, testing reports, and customization options. Contact us today for a quotation, datasheet, or engineering consultation—our team will help you select the optimal transformer for your distribution network.
