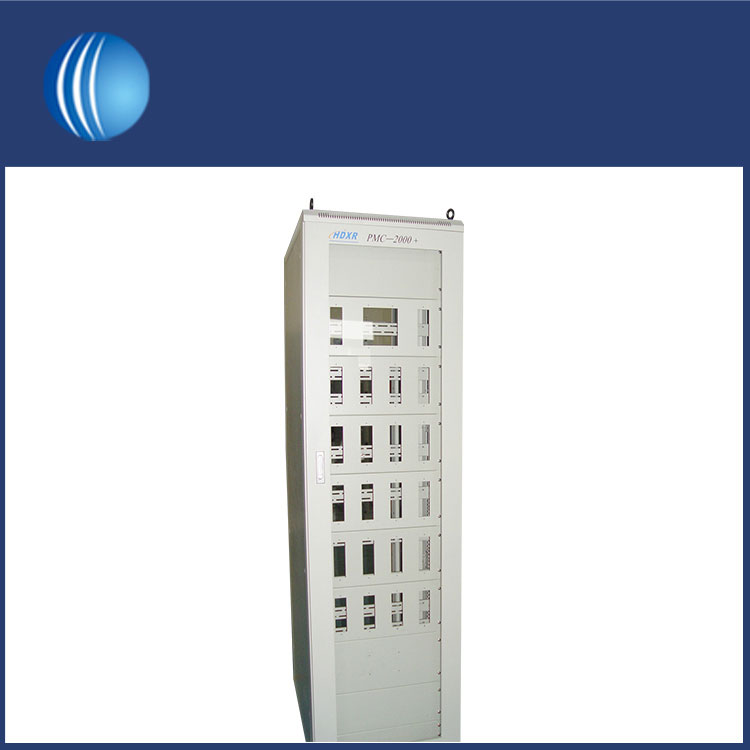

How to Perform Preventive Maintenance on a Power Supply Control Cabinet

A Power Supply Control Cabinet is the backbone of any industrial electrical system. Without regular checks, unexpected downtime and costly repairs become inevitable. At SKYT, we recommend a structured preventive maintenance plan to keep your Power Supply Control Cabinet operating safely and efficiently for years.

Why Preventive Maintenance Matters

Routine maintenance reduces failure risks, extends equipment lifespan, and ensures operator safety. Below is a standard maintenance schedule recommended by SKYT engineers.

Step-by-Step Maintenance Procedure

Follow these seven steps when servicing any Power Supply Control Cabinet:

1. Lockout/Tagout (LOTO) – Disconnect all incoming power sources. Verify zero energy state.

2. Clean the interior – Use a vacuum with non-conductive nozzle and soft brushes. Avoid compressed air which can drive debris into components.

3. Inspect all components – Look for swollen capacitors, discolored wires, or burnt smells.

4. Torque all connections – Loose terminals cause arcing and heat. Use a calibrated torque wrench.

5. Test protective devices – Manually trip breakers and contactors to ensure mechanical freedom.

6. Measure environmental conditions – Log internal temperature and humidity. Recommended: below 40°C and <85% RH.

7. Update documentation – Record all readings, replaced parts, and observations.

SKYT cabinets include color-coded wiring diagrams and QR-coded service logs to simplify this process.

Frequently Asked Questions about Power Supply Control Cabinet Preventive Maintenance

Q1: How often should I perform preventive maintenance on a Power Supply Control Cabinet in a harsh industrial environment?

A1: For environments with high dust, humidity, or temperature variations (e.g., cement plants, outdoor solar farms, or chemical facilities), SKYT recommends a shortened interval: visual inspection every two weeks, full quarterly maintenance instead of biannual. Harsh conditions accelerate contact oxidation and filter clogging. Always monitor internal cooling fans and replace air filters monthly if the cabinet is rated below IP54.

Q2: What are the signs that a Power Supply Control Cabinet needs immediate maintenance before the scheduled date?

A2: Three red flags require immediate action: (1) Unusual buzzing or clicking sounds from contactors or relays. (2) A persistent smell of hot plastic or sulfur – often indicates melting insulation or failing capacitors. (3) Intermittent resets of connected machinery without operator command, which suggests voltage sags or arcing inside the cabinet. If any of these occur, perform a full shutdown inspection following LOTO procedures.

Q3: Can I perform preventive maintenance on a Power Supply Control Cabinet without shutting down production?

A3: Only infrared scanning and limited visual checks through viewing windows can be done live. Any task involving terminal tightening, component replacement, or cleaning near live parts requires a complete power outage. SKYT cabinets are designed with segregated compartments (power vs. control) that allow some control-side maintenance while power remains off on the main bus, but for full preventive maintenance, a scheduled shutdown is mandatory to meet OSHA and NFPA 70E safety standards.

Tools You Will Need

Final Checklist from SKYT

• Power disconnected and verified

• Interior dust and debris removed

• All terminals torqued to specification

• No signs of overheating or arcing

• Cooling fans and filters operational

• Door seals and gland plates intact

• Labels and warning signs legible

Need Professional Support?

Proper preventive maintenance of a Power Supply Control Cabinet requires both discipline and the right tools. SKYT offers on-site training, custom maintenance checklists, and remote diagnostic support for all our cabinet models. Contact us today to schedule a free consultation or request a service quote. Your system’s reliability starts with one click.
