How Does High Voltage Switchgear Protect Against Electrical Faults and Arc Flash
2025-12-11
In the complex ecosystem of power distribution, system integrity and personnel safety are paramount. High Voltage Switchgear forms the critical frontline defense, isolating faults and preventing catastrophic events like arc flashes. At LUGAO, we engineer our switchgear with a multi-layered protection philosophy, integrating advanced technologies to ensure operational continuity and maximum safety. Our systems are designed not just to react to faults, but to anticipate and mitigate risks proactively.
The core protective functions of modern High Voltage Switchgear involve several key mechanisms:
-
Advanced Relay Protection: Digital intelligent relays continuously monitor current, voltage, and frequency. They accurately detect anomalies like short-circuits or overloads and issue trip commands within milliseconds.
-
High-Capacity Circuit Breakers: These are the primary interrupting devices. LUGAO breakers utilize superior interrupting media (like vacuum or SF6) to swiftly and safely extinguish the arc that forms when a circuit is interrupted under fault conditions.
-
Arc-Resistant Construction: Our switchgear is built to contain internal arc energy. Reinforced structures, pressure relief channels, and securely bolted panels direct any arc blast safely away from personnel.
-
Earthing and Shielding: Comprehensive earthing ensures safe step and touch potentials, while insulated components and barriers prevent unintended flashovers.

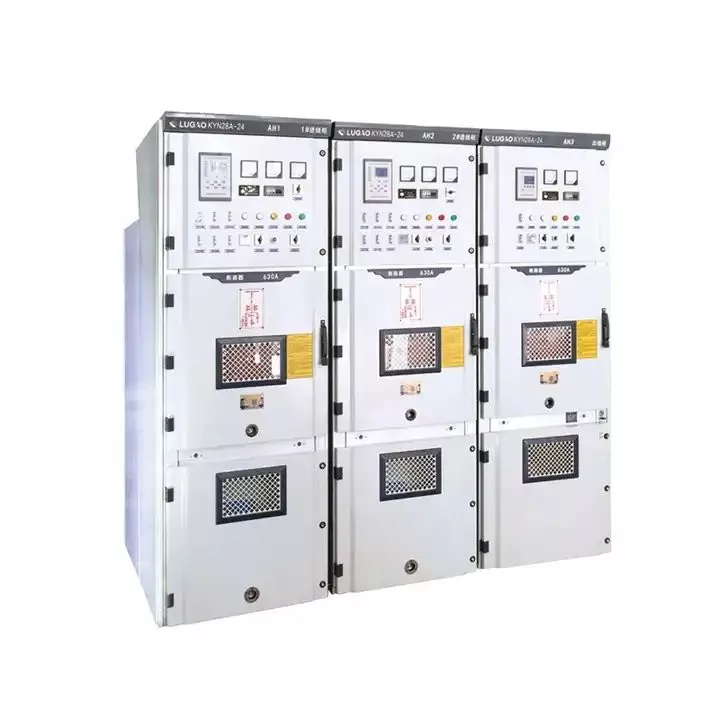

LUGAO High Voltage Switchgear: Key Protective Features at a Glance
| Feature | LUGAO Specification | Protective Benefit |
|---|---|---|
| Interrupting Medium | Vacuum / SF6 Gas | Ensures rapid, reliable arc extinction with minimal maintenance. |
| Short-Circuit Withstand | Up to 50 kA / 3s | Robust construction to withstand high fault currents without damage. |
| Arc Containment Class | Internal Arc Class IAC AFLR (Accessible Front, Lateral, Rear) | Contains arc effects, safeguarding personnel in switchgear vicinity. |
| Control & Protection | Integrated Digital Micropressor Relays | Provides precise, customizable protection schemes and remote monitoring. |
| Insulation Level | Hi-pot tested per IEC 62271-200 | Guarantees dielectric strength and long-term insulation integrity. |
High Voltage Switchgear FAQ
Q: What is the primary difference between circuit breakers and switchgear?
A: A circuit breaker is a single device designed to interrupt fault current. Switchgear, however, is a complete assembly that includes not only breakers but also disconnect switches, fuses, protective relays, control systems, and metering, all housed in a coordinated structure for comprehensive circuit control and protection.
Q: How often should High Voltage Switchgear be maintained?
A: Maintenance frequency depends on operating environment, duty cycle, and technology. As a general rule, a thorough inspection and maintenance by qualified personnel is recommended annually. LUGAO's digital monitoring systems can predict maintenance needs, enabling condition-based strategies rather than just fixed schedules.
Q: Can old air-insulated switchgear (AIS) be upgraded for better arc flash protection?
A: Yes, to a significant extent. Retrofitting with modern LUGAO digital relays can drastically reduce fault clearing times, a key factor in lowering arc flash incident energy. Additionally, arc flash detection kits, remote racking systems, and enhanced protective clothing zones can be implemented to improve safety on existing installations.
Protecting your infrastructure and team requires a partner committed to engineering excellence and safety innovation. LUGAO's range of High Voltage Switchgear is built to the highest international standards, offering peace of mind through robust, intelligent design. Contact us today to discuss how our solutions can fortify your electrical system's defense against faults and arc flash hazards.
