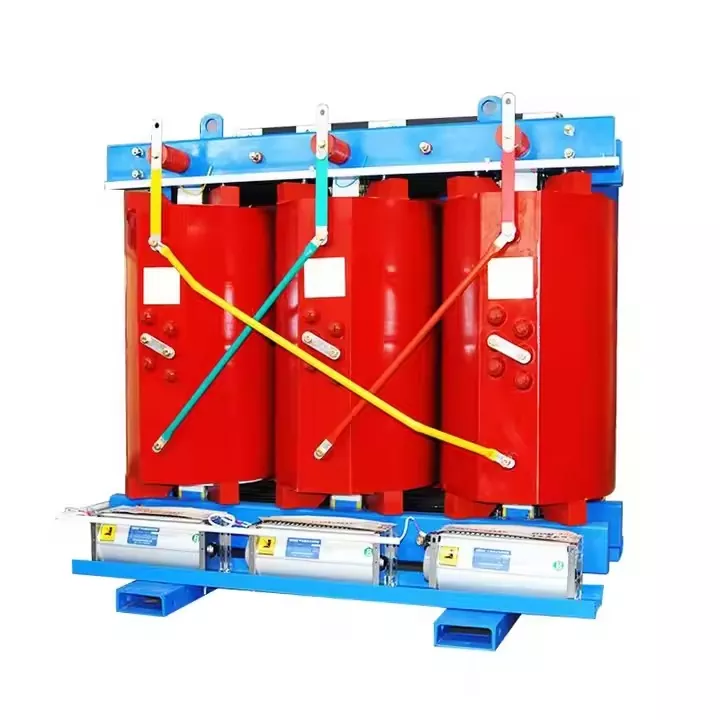

How Do You Troubleshoot Overheating Issues in Dry Type Transformers
2025-12-25
An overheating Dry Type Transformer is a serious concern that can lead to reduced efficiency, insulation degradation, and ultimately, catastrophic failure. Prompt and systematic troubleshooting is essential for maintaining system reliability and safety. At Lugao, we combine decades of engineering expertise with premium-quality components to help you diagnose and resolve these critical issues efficiently.
A logical, step-by-step approach is key to identifying the root cause. Follow this structured checklist to begin your investigation:
-
Verify Ventilation & Ambient Conditions: Ensure the transformer room has adequate airflow and that intake/exhaust vents are completely unobstructed. Check if the ambient temperature exceeds the transformer's design specifications.
-
Inspect for Foreign Objects: Look for an accumulation of dust, debris, or any foreign materials on the windings and cooling ducts. This acts as an insulating blanket, trapping heat.
-
Check the Loading Profile: Use a clamp meter to measure the actual primary and secondary currents. Compare these against the nameplate ratings. Consistent overloading is a primary cause of overheating.
-
Assess Harmonic Distortion: In modern facilities with non-linear loads (e.g., VFDs, servers), excessive current harmonics can cause significant additional heating in the windings and neutral.
-
Examine Connections: Infrared thermography is an excellent tool to identify loose or corroded connections at the line and load terminals, which create hot spots.
To quantify common issues, refer to the following diagnostic table:
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Uniformly high temperature across windings | Ambient temperature too high or chronic overloading. | Improve ventilation or reduce load. Consider a Lugao unit with a higher kVA rating. |
| Localized hot spot on winding | Blocked cooling duct or insulation failure. | Clean cooling passages thoroughly. If persists, consult a specialist. |
| Hot connection terminals | Loose, damaged, or corroded busbar/ cable connection. | Power down, clean, and retorque all connections to manufacturer specs. |
| Excessive hum with heat | Loose core laminations or severe harmonic distortion. | Secure core clamping bolts. Perform harmonic analysis and consider a K-rated Dry Type Transformer. |
Dry Type Transformer FAQ
Q: Can a dry type transformer be installed outdoors?
A: Yes, but only with the appropriate enclosure. Standard units are for indoor use. For outdoor installation, you must specify a Dry Type Transformer with a weatherproof (WP) or totally enclosed, non-ventilated (TENV) enclosure from the manufacturer to protect against rain, moisture, and contaminants.
Q: How often should dry type transformers be maintained?
A: A comprehensive maintenance inspection is recommended at least annually. This includes visual checks, cleaning, verifying torque on electrical connections, and checking insulation resistance. Lugao transformers are built for durability, but regular maintenance is crucial for maximizing lifespan and preventing issues like overheating.
Q: What is the typical lifespan of a dry type transformer?
A: Under normal operating conditions (within nameplate ratings, clean environment, stable voltage), a well-manufactured Dry Type Transformer can have a service life of 20-30 years or more. The lifespan is directly impacted by operating temperature; consistent overheating can drastically reduce it by accelerating insulation aging.
Persistent overheating often indicates a need for a design review or a equipment upgrade. Lugao's engineering team specializes in providing robust transformer solutions tailored to withstand demanding electrical environments and prevent such operational headaches.
