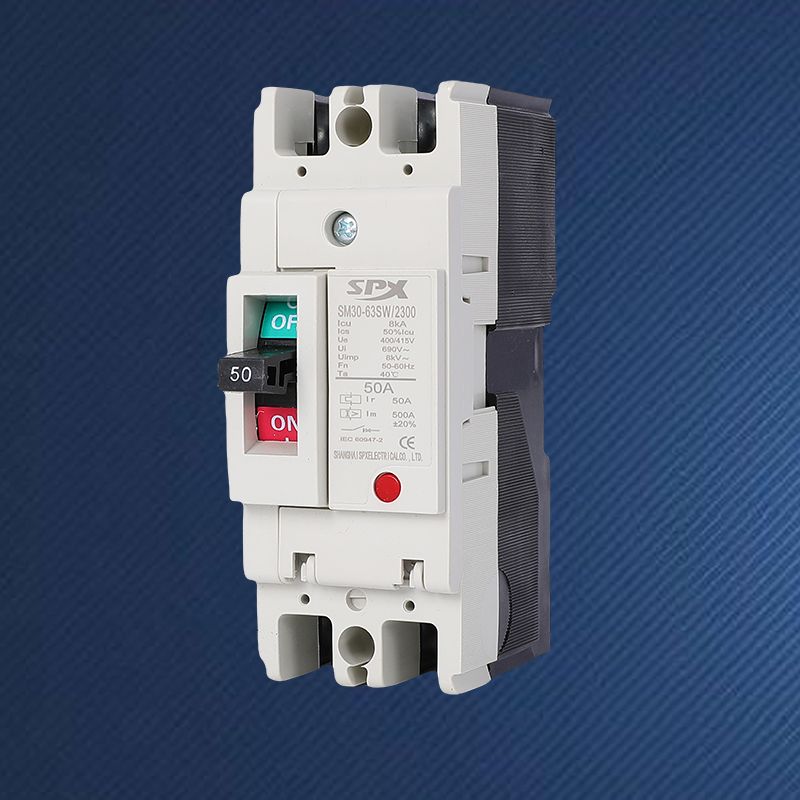

How do you perform maintenance on a molded case circuit breaker

Regular and proper maintenance of your Molded Case Circuit Breakers (MCCBs) is not just a recommendation; it is a critical safety and operational necessity. Ensuring these devices function correctly protects your electrical infrastructure, prevents costly downtime, and safeguards personnel. As a leader in electrical solutions, SPX emphasizes a proactive approach to maintenance, combining industry best practices with our deep engineering expertise to maximize the lifespan and reliability of your equipment.

A systematic maintenance routine involves several key steps. Always begin by following all safety protocols, including de-energizing the entire circuit and verifying the absence of voltage with a properly rated tester.

Essential Maintenance Checklist:

• Visual Inspection: Check for signs of overheating, corrosion, contamination, or physical damage on the Molded Case Circuit Breaker housing, terminals, and connections.

• Mechanical Operation: Manually operate the breaker several times to ensure the mechanism is free from binding or unusual resistance.

• Connection Tightening: Ensure all electrical connections, both line and load side, are tight to the manufacturer's specified torque to prevent overheating.

• Insulation Resistance Test: Perform a megohmmeter test to verify the integrity of the breaker's insulation.

• Contact Resistance Test: Use a low-resistance ohmmeter to measure the resistance across closed contacts. High resistance indicates wear or contamination.

SPX Recommended Maintenance Intervals (General Guide):

Molded Case Circuit Breakers FAQ Common Problem

What does it mean if my MCCB is warm to the touch?
A slightly warm terminal connection can be normal due to current flow. However, excessive heat often indicates a loose connection. You must de-energize the circuit, check, and retorque all connections to the SPX manufacturer's specifications to prevent potential failure or fire.

Why does my molded case circuit breaker trip immediately upon resetting?
An immediate trip typically signals a persistent fault. Do not repeatedly force the breaker to reset. The cause could be a dead short circuit in the downstream wiring, a failed load component, or, in some cases, a damaged breaker mechanism that can no longer hold. Professional diagnosis is required.

Can I simply clean the contacts of my MCCB with any solvent?
No, using an incorrect cleaner can cause severe damage. You should only use a contact cleaner specifically designed for electrical components that is non-flammable and leaves no residue. For SPX breakers, always refer to the official maintenance manual for approved cleaning agents and procedures.

Consistent, documented maintenance is the most effective strategy to ensure your electrical system's safety and reliability. By adhering to a scheduled plan and using precise techniques, you protect your critical assets. The team at SPX possesses the specialized knowledge and tools to support your maintenance programs, from providing detailed guidance to offering professional services.
