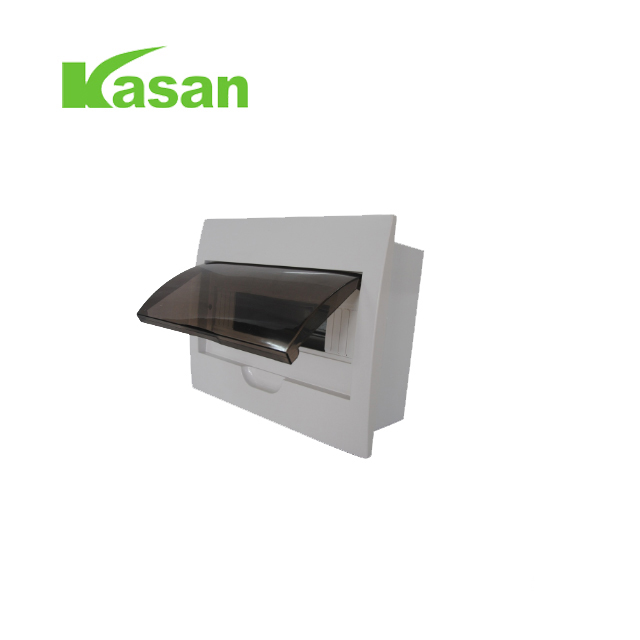

Does a Flush Type Plastic Distribution Box Meet Modern Electrical Safety Code Requirements

When contractors and facility managers evaluate enclosure options for new builds or retrofit projects, the question of regulatory compliance inevitably takes center stage. The electrical industry has witnessed a significant shift toward non-metallic enclosures over the past decade, yet lingering skepticism remains about whether polymer-based solutions can withstand the scrutiny of inspection authorities. The definitive answer is affirmative—provided the unit carries legitimate third-party certifications and is installed according to manufacturer specifications. However, the path to full compliance involves understanding material properties, installation nuances, and regional code variations. At Kasan, we have dedicated our engineering resources to developing a Flush Type Plastic Distribution Box portfolio that consistently passes the most demanding certification protocols across North America, Europe, and Asia-Pacific markets. Our enclosures are routinely subjected to destructive testing, thermal cycling, and dielectric verification to ensure they not only meet but frequently surpass the baseline requirements of IEC 61439, UL 67, and BS EN 61439-3.

1. Core Safety Standards Governing Flush Type Plastic Distribution Boxes

Modern electrical codes are not optional guidelines—they are legally enforceable regulations. A compliant Flush Type Plastic Distribution Box must pass rigorous tests for dielectric strength, short-circuit withstand, and protection against electric shock. The table below summarizes the primary standards applicable to flush-mount plastic enclosures:

A Kasan Flush Type Plastic Distribution Box typically carries dual certifications (e.g., CE + UKCA), confirming that the enclosure’s insulating material—often a V0-grade polycarbonate or ABS—passes the glow-wire test at 850°C. This is critical because code officials now demand evidence of flame retardancy and low smoke emission, especially in multi-occupancy buildings.

2. Flush Mounting vs. Safety Compliance: The Hidden Challenges

Flush mounting introduces unique safety considerations that surface-mounted boxes avoid. When a Flush Type Plastic Distribution Box is recessed into a wall cavity, the enclosure becomes part of the building’s thermal and fire barrier. Codes such as IEC 60364 require that:

• The box maintains an IP30 or higher rating after installation to prevent dust and moisture ingress from the surrounding masonry.

• Cable entry points are sealed with proprietary grommets to avoid chafing—a common cause of phase-to-earth faults.

• The flush cover is secured with tamper-proof screws, preventing unauthorized access to live parts.

Kasan addresses these points by integrating pre-molded knockouts with strain-relief ribs and supplying a flush-mounting frame that compensates for uneven plaster depths. This design ensures that the Flush Type Plastic Distribution Box does not compromise the wall’s fire-resistance rating (typically 30–90 minutes), a factor that inspectors rigorously verify during final sign-off.

3. Material Evolution: Why Plastic Outperforms Metal in Specific Scenarios

Many speculators assume metal boxes are inherently safer. However, modern plastics offer distinct advantages when evaluated against code criteria:

According to NEC 250.4, a Flush Type Plastic Distribution Box does not require supplementary bonding because its insulating body cannot become energized—provided all metallic internal parts (busbars, DIN rails) are properly earthed. Kasan designs our enclosures with a dedicated earth terminal block that is visually distinct (green/yellow) and torqued to specification, ensuring that inspectors can quickly confirm compliance.

4. Five Critical Code Checks Before Installation

To guarantee that your Flush Type Plastic Distribution Box passes inspection, always verify these five points:

1. Fault current rating – Must exceed the prospective short-circuit current at the point of installation (typically 6kA–25kA).

2. Temperature derating – If the box is installed in a boiler room or attic, derate the current-carrying capacity per IEC 60695.

3. Cable bending radius – Flush boxes have limited internal depth; verify that incoming tails (e.g., 25mm²) do not bend sharply, which violates code.

4. Locking mechanism – The flush door must require a tool to open (screwdriver or hex key) to comply with child-safety regulations.

5. Labeling – Permanent marking of rated voltage, current, and fault level is mandatory under BS 7671.

Kasan provides a pre-installation checklist with every Flush Type Plastic Distribution Box, reducing on-site errors and rework costs.

5. Frequently Asked Questions About Flush Type Plastic Distribution Box Compliance

FAQ 1: Can a Flush Type Plastic Distribution Box be used as a main service entrance panel?
Yes, but only if it is rated for the upstream overcurrent device's interrupting capacity. For a main switch rating of 100A or higher, the enclosure must have a metallic backplate to support heavy busbars. Kasan offers a reinforced version of our Flush Type Plastic Distribution Box with a galvanized steel sub-panel, specifically certified for service-entrance duty under UL 67. Ensure that the utility meter compartment remains separate—codes prohibit combining metering and distribution in a single flush enclosure unless the utility provides explicit written approval.

FAQ 2: How do I verify that my Flush Type Plastic Distribution Box has adequate IP rating for a garage or workshop?
Check the second digit of the IP code (e.g., IP54). The ‘5’ indicates dust-protected, and the ‘4’ means splashing water from any direction causes no harmful effects. For garages with pressure washers, select at least IP65. Kasan clearly stamps the IP rating on the enclosure’s inner lid, and we recommend using dielectric grease on all gland entries to preserve the rating after cable installation. If your environment has corrosive vapors (batteries or chemicals), upgrade to IP66 with additional gasket sealing—our technical team can advise on the correct variant.

FAQ 3: Does a Flush Type Plastic Distribution Box require RCD protection upstream or downstream?
Codes (including 18th Edition AMD 3) mandate that all final circuits below 32A have RCD protection rated at 30mA. The Flush Type Plastic Distribution Box itself does not require an upstream RCD unless it feeds a sub-distribution board. However, best practice is to install a Type A or Type B RCCB as the main switch within the flush box. Kasan pre-configures many of our Flush Type Plastic Distribution Box units with a 63A 30mA RCD as standard, saving installation time and ensuring compliance with domestic and light-commercial regulations.

6. Conclusion: Compliance Is a System, Not a Single Component

Ultimately, a Flush Type Plastic Distribution Box meets modern safety codes when treated as part of a holistic electrical system—correct cable selection, proper torque settings, adequate earthing, and periodic thermal imaging surveys. The enclosure itself is only as safe as the installation quality. Kasan supports this by providing clear wiring diagrams, torque labels, and access to certified technical support for every Flush Type Plastic Distribution Box we manufacture.
