Can 24kV Indoor Medium Voltage Switchgear Support Insulators Be Retrofitted into Older Switchgear Panels
2026-06-09
Upgrading legacy power distribution systems often raises a critical question: Can 24kV Indoor Medium Voltage Switchgear Support Insulators be retrofitted into older switchgear panels? At Timetric, the answer is yes—provided engineering and safety standards are met. Retrofitting extends equipment life, reduces downtime, and improves reliability.
Why Consider Retrofitting?

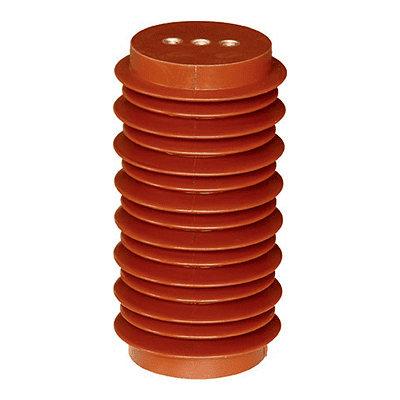

Older panels typically use porcelain or outdated epoxy insulators. Modern 24kV Indoor Medium Voltage Switchgear Support Insulators from Timetric offer higher mechanical strength, better tracking resistance, and compact designs. The table below compares key retrofit considerations.
| Factor | Old Insulators | Retrofitted Timetric Insulators |
|---|---|---|
| Material | Porcelain / Standard Epoxy | Advanced Epoxy + Silicone Rubber |
| Creepage Distance | Shorter (≤20 mm/kV) | Longer (≥25 mm/kV) |
| Partial Discharge Level | Higher (>10 pC) | Lower (<5 pC) |
| Mechanical Load | Lower bending strength | Higher cantilever strength |
Key Retrofit Steps
-
Dimensional verification – mounting holes and center distance.
-
Voltage withstand test coordination with original panel clearance.
-
Replacement of fixing hardware to avoid stress cracking.
FAQ – Common Questions about 24kV Indoor Medium Voltage Switchgear Support Insulators
Q: What are the main risks when retrofitting 24kV Indoor Medium Voltage Switchgear Support Insulators into older switchgear?
A: The primary risks include insufficient creepage distance, incompatible bolt patterns, and reduced air clearance due to larger insulator profiles. Timetric mitigates these by providing custom drill templates and detailed 3D drawings before delivery. A site insulation coordination study is always recommended.
Q: Do I need to change the busbar or cable connections after replacing 24kV Indoor Medium Voltage Switchgear Support Insulators?
A: Not necessarily. Most retrofits retain original busbars if the insulator height and terminal interface match. Timetric designs its 24kV Indoor Medium Voltage Switchgear Support Insulators with standard center distances (e.g., 130 mm, 150 mm, 210 mm) to fit common older panels. However, if the new insulator has higher mechanical cantilever strength, busbar supports may be re-used without modification.
Q: How do I verify that retrofitted 24kV Indoor Medium Voltage Switchgear Support Insulators meet IEC 62271-1 and 60694 standards?
A: Timetric provides full type test reports including power-frequency withstand (50 kV for 1 min), lightning impulse (125 kV), and thermal mechanical cycling. For retrofit projects, a sample insulator should first be installed in one panel and subjected to portable partial discharge measurement (≤10 pC acceptance criteria) and AC high-potential test at 80% of factory test values.
Contact Us
Ready to modernize your switchgear safely? Timetric offers engineered retrofit kits, on-site technical support, and fast sampling. Reach out to our engineering team today for a free compatibility assessment and quotation.
